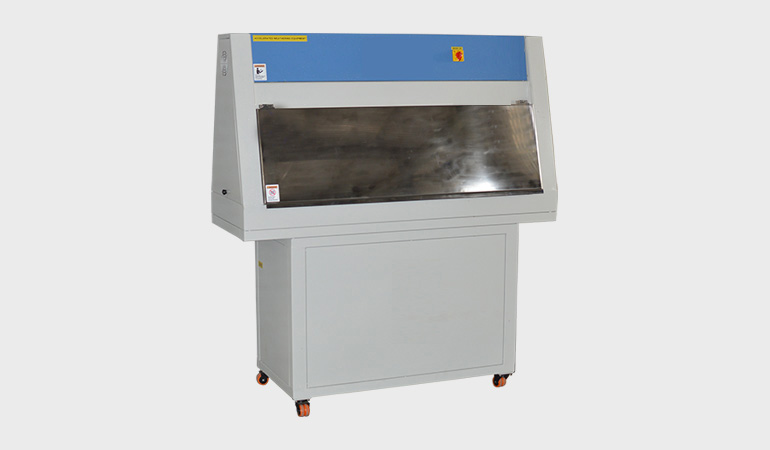

UV Weathering Tester

Inspire DWT accelerated weathering tester is a laboratory simulator of the damaging effects of weather. It is used to predict the relative durability of materials exposed to the outdoor environment. Rain and dew are simulated by a revolutionary condensation system. The damaging effects of sunlight are simulated by fluorescent UV lamps. Exposure temperature is automatically controlled, as the daily sequence of UV periods and condensation periods. Testing duration of deterioration effect can be reduce by DWT which may occur in a longer period like a month or years of outdoor exposure. Deterioration observed includes fading, chalking, cracking, crazing, hazing, blistering, gloss lose, strength lose, and embitterment.

SPECIFICATION

Light SourceFluoresent UV-B type lamp with wavelength of 313 nm.
UV Lamps40 w, 08 nos.
Panel Temp. Rangeambient to 90°C
Panel  Temp. Accuracy±2°C
Water/condensation temp. range ambient to 90°C
Test CapacityProvision of holding 22 specimen of size 75 x 300 mm
Test SpecificationASTM G 53, ASTM D 4329, ASTM D 5208, ISO 4892 and other relevant national and international standards.
Power Requirement

220/230 V AC, 50 Hz Single Phase
